Wirtz Automotive Gravity Casting Machine – Model 40C

Wirtz Automotive Gravity Casting Machine – Model 40C

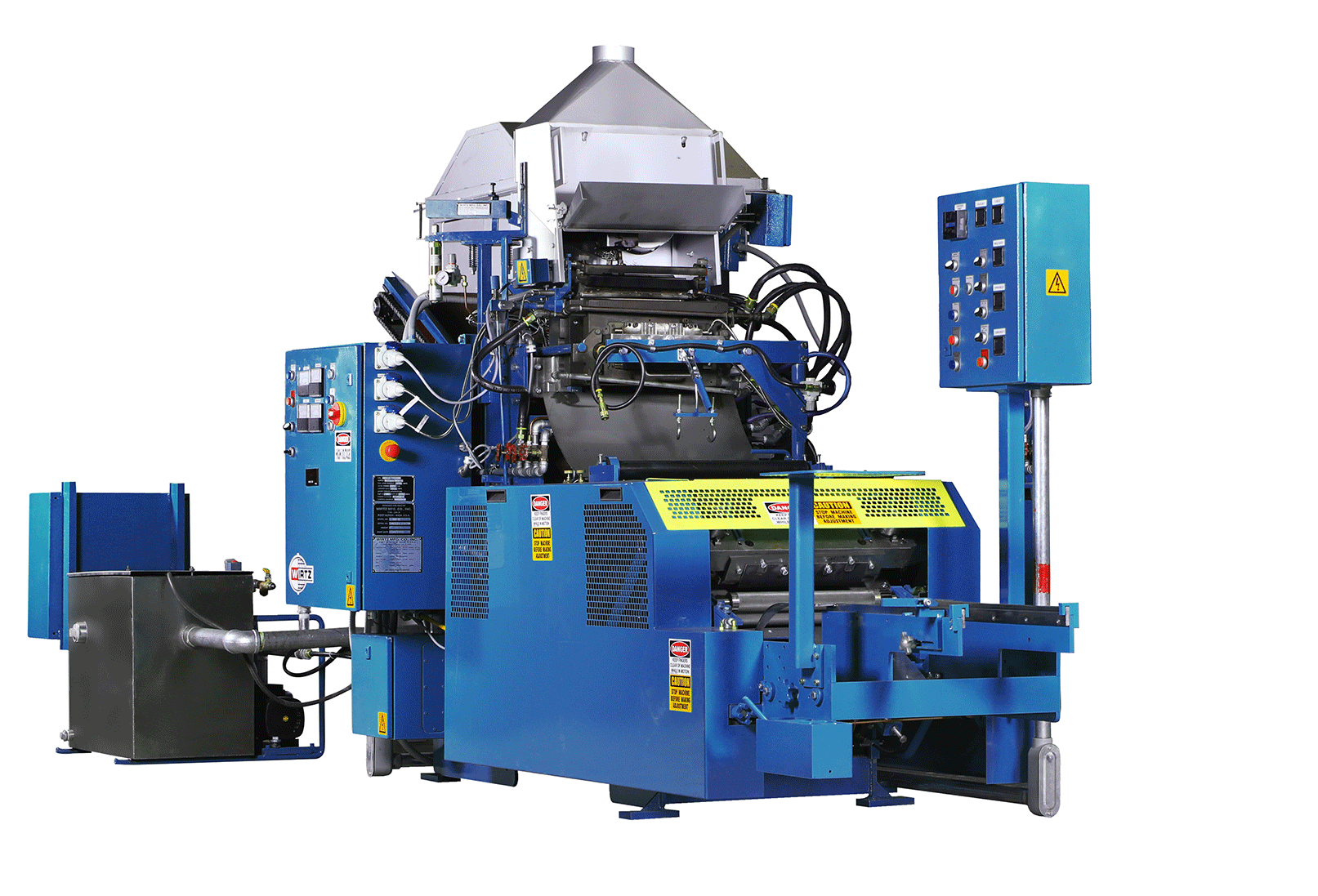

Wirtz Model 40/40C Mechanically Operated Gravity Grid Casting Machines

The Wirtz Models 40/40C are high speed gravity grid casters designed with state of the art controls and technical enhancements. Casting efficiency is provided by electric mold heat, greatly improved temperature controls, and our non-recirculation lead delivery system (LDS). Electric Mold Heat is applied to both the moveable and stationary halves of the mold by cartridge heaters. Automatic temperature controllers monitor the temperature settings of the mold, ladle and feed line. Any fluctuation in these temperatures is automatically corrected. The lead delivery system (LDS) has been drastically improved because the LDS does not use a return lead trough. This system flows from the lead furnace to a dispensing valve where an adjustable amount of lead is allowed to enter the ladle after each pour. Dross is controlled with gas shielding, ladle covers, and drip bars.

PRODUCTION:
Speeds up to 18 casts per minute. One operator, (3) machines, up to 35,000 grids per (8) hour shift.
Trim Width:
4.250” (108mm) min to 6.735” (161mm) max
Lug to lug:
7.375” (187mm) min to 13.625” (346mm) max
Grid Thickness:
0.040” (1.02mm) min to 0.188” (4.77mm) max
OTHER MODELS AVAILABLE:
Model 40, Model 45/45C, Model 55/55C, Model 40Ci

*These are very general specification and will change based on the exact configuration of the system that is ordered.

Electrical: (Supply 480VAC, 3 phase , 60 Hz standard) 200V to 575V, 50 Hz or 60 Hz, Control Voltage: 24VDC

Fuel Pressure: 14” WC (350mm WC) max 5” WC (127mm WC) min Natural Gas: 1000 BTU/Cu/Ft (8.900 Kcal/M Cu) Volume: 25 CFH (0.7 M Cu/Hr)

Propane: 2500 BTU/Cu/Ft (22.250 Kcal/M Cu) Volume: 10 CFH (0.3 M Cu/Hr)

Compressed Air: Optimum 14 CFM (0.4m Cu/Min) Peak 48 CFM (1.4 m Cu/Min) Pressure: 100 PSI (6900 m bar) max 80 PSI (5520 m bar) min

Water: Cooling Water Supply Temperature: Max 75°F (24°C) Volume: 60 GPH (225 Liters/Hr) Pressure: 80 PSI (5520 m bar) max 20 PSI (1380 m bar) min

Ventilation: (Note: Figure may also be included in the ventilation requirements for the furnace) Volume 760 CFM (21.4 M Cu/Hr)
